Fork Tools / Micro Bleeders

Fork Cap Wrench 50mm Fork Seal Driver 45mm Fork Cap Socket
for WP4CS Fork
Fork Cap Tool
for KTM
ForkTru
Fork Alignment Tool
Micro Bleeders
Orange/Black/Silver/Gold

    Cost Add To Cart


50mm WP Dual Chamber Fork Cap Wrench
Fits XPLOR Forks 2017-18 KTM and Husky models without Air Forks 50 mm, 6 point box wrench for removing the fork cap (cartridge) on WP 4860 MXMA dual chamber closed cartridge (WP USD 48 mm) forks on late-model KTMs
MP-08-0428


$20.99
MSRP $22.99


48mm Fork Seal Driver
Fits 48mm forks legs, makes easier and safer to use.
MP-08-0493

$47.99
MSRP $52.99





Fork Cap Socket, WP4CS Fork
Fits 2014 KTM XC models and all 2013-14 Husaberg with WP 4860 4CS forks.
For removing and installing LH and RH adjustable fork caps. Allows you to properly torque the fork cap assemblies during installation.
MP-08-0573


$25.99
MSRP $27.99



Fork Cap Tool for KTM
Fits open chamber fork caps with the 4-holes in the cap (KTM part no. 48600074S9)
MP-08-0290

$22.99
MSRP $24.99


ForkTru - Fork Alignment Tool
For aligning front forks to ensure they are parallel from top to bottom.
MP-08-0412

$31.49
MSRP $34.99

    Cost Add To Cart


M4x0.7, WP 43mm-48mm without External Preload - Orange
For use on all 1999 and later WP 43/WP 48 fork caps (KTM part nos. 4860.0020S and 4860.0020S1) without external spring preload adjustment. These fork caps DO NOT require a pin spanner to remove the fork cap.
MP-11-0081


$13.99
MSRP $15.50





M4x0.7, WP 48mm with Adjustable Preload - Black
For 2007 or later SX/SXF/XC/XCF/XCW models with WP 4860 MXMA CC Closed Cartridge fork caps (KTM part no. 4860.0516S1). And for use on all 1999 and later WP 43/WP 48 fork caps (KTM part nos. 4860.0074S and 4860.0075S) with external spring preload adjustment. These fork caps require a 4-pin spanner (MP P/N 08-0290) to remove the fork cap.
MP-11-0080


$13.99
MSRP $15.50



Micro Bleeder M5x0.8 Silver - for KYB forks
For use on most KYB inverted forks with a M5x0.8 air bleed screw in the fork cap. Fits on many late model Japanese offroad motorcycles.
MP-11-0095


$13.99
MSRP $15.50



Micro Bleeder M5x0.8 Gold - for Showa forks
For use on most Showa inverted forks with a M5x0.8 air bleed screw in the fork cap. Fits on many late model Japanese offroad motorcycles.
MP-11-0089


$13.99
MSRP $15.50






Fork Tools

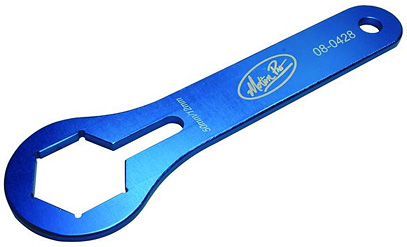

50mm WP Dual Chamber Fork Cap Wrench (MP-08-0428)
Features:
  Fits XPLOR Forks 2017-18 KTM and Husky models without Air Forks
  50 mm, 6 point box wrench for removing the fork cap (cartridge) on WP 4860 MXMA dual chamber closed cartridge (WP USD 48 mm) forks on late-model KTMs
  12 mm slot for holding the damper rod for removing the rebound bolt. This allows for the removal of the cartridge from the lower fork leg
  Made from billet 6061-T6 and anodized Motion Pro blue
  Laser engraved markings with Motion Pro logo
  Original Motion Pro design

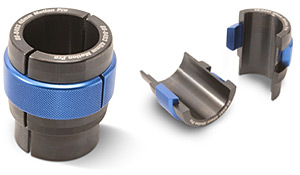

48mm Fork Seal Driver (MP-08-0493)
Features:
  Fits 48 mm fork legs
  Innovative design makes tool easier and safer to use than old fashioned pin aligned drivers
  Anodized aluminum locking ring features knurled finish for secure no-slip grip and positively locks body halves together during use
  No more worrying about part of the tool falling off and damaging the fork leg or hitting your feet
  Perfectly weighted to drive seals
  Body halves are machined from durable carbon steel and feature high quality protective black e-coat with laser engraved markings
  Lifetime Limited Warranty from Motion Pro
  Patented design

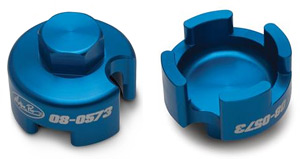

Fork Cap Socket, WP4CS Fork (MP-08-0573)

Features:
  Fits 2014 KTM XC models and all 2013-14 Husaberg with WP 4860 4CS forks
  For removing and installing LH and RH adjustable fork caps
  Allows you to properly torque the fork cap assemblies during installation
  17mm hex head
  Made from billet 6061 T-6 aluminum
  Anodized finish with laser engraving
  Caution: Always wear safety glasses and refer to the fork manufacturer for correct assembly and disassembly procedures.

Fork Cap Tool for KTM and CR Seal Retainer (MP-08-0290)
Features:
  Versatile design features a 22mm hex and 3/8 in. square drive.
  Precision design prevents damage to the retainer ring after peened stakes have been removed by drilling
  Replaces the OEM Honda tool to remove and replace the rear wheel bearing / seal retainer ring, part number 41231-430-000
  Also for use on: CR250R 78-83, CR450R 81, CR480R 82
  This tool allows removal and replacement of the accessory fork cap KTM part# 48600074S
  The tool is slotted to allow removal and replacement of caps with the MP-11-0081 (above) Micro Bleeders

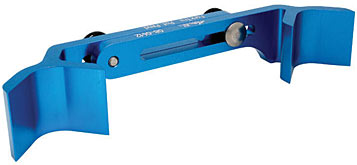

ForkTru Fork Alignment Tool (MP-08-0412)
Features:
  Quick and easy to use tool for aligning front forks to ensure they are parallel from top to bottom
  Knurled adjustment screws for easy setup
  Reduces stiction and improves the performance of your front suspension
  Reduces seal and bushing wear
  Fits most MX and Off-Road motorcycles (does not work on most sport bikes due to large brake rotor diameter and 17 inch wheel diameter)
  Will work on 27 mm - 62 mm fork legs and tubes
  Works on forks that are—0 mm to 220 mm on center
  Patented design

Micro Bleeders

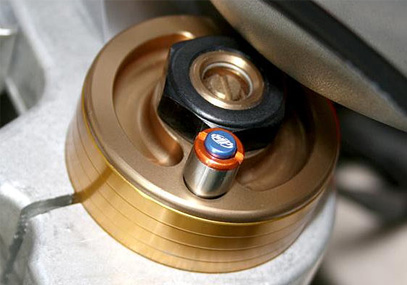

- Micro Bleeder Orange (MP-11-0081)
  Features:
  For use on all 1999 and later WP 43/WP 48 fork caps (P/N's 4860.0020S and 4860.0020S1) without external spring preload adjustment. These fork caps DO NOT require a pin spanner to remove the fork cap
  New ultra-compact, low profile design is only 11mm high installed
  Stainless steel body is stronger and will not corrode
  Easy to install, simply replace the OEM bleeder screw with the Micro Bleeder
  Reduces harshness caused by air build-up
  Allows bleeding of air pressure without tools
  One of the easiest bolt-on upgrades you can make to your forks
  Kit includes two bleeder valves

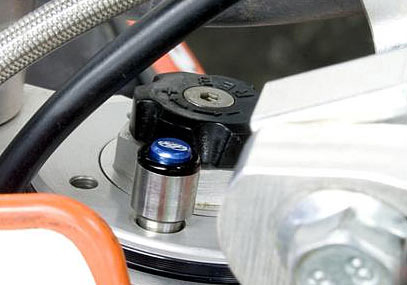

Micro Bleeder Black (MP-11-0080)
    Features:
  For 2007 or later SX/SXF/XC/XCF/XCW models with WP 4860 MXMA CC Closed Cartridge fork caps (P/N 4860.0516S1). And for use on all 1999 and later WP 43/WP 48 fork caps (P/N's 4860.0074S and 4860.0075S) with external spring preload adjustment. These fork caps require a 4-pin spanner (MP P/N 08-0290) to remove the fork cap.
  New ultra-compact, low profile design is only 11mm high installed
  Stainless steel body is stronger and will not corrode
  Easy to install, simply replace the OEM bleeder screw with the Micro Bleeder
  Reduces harshness caused by air build-up
  Allows bleeding of air pressure without tools
  One of the easiest bolt-on upgrades you can make to your forks
  Kit includes two bleeder valves

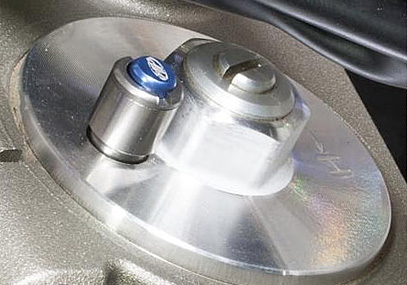

Micro Bleeder KYB Silver (MP-11-0095)
  Features:
  For use on most KYB (silver) inverted forks with a M5x0.8 air bleed screw in the fork cap
  New ultra-compact, low profile design is only 11mm high installed
  Stainless steel body is stronger and will not corrode
  Will fit on many late model Japanese off-road motorcycles
  Easy to install, simply replace the OEM bleeder screw with the Micro Bleeder
  Reduces harshness caused by air build-up
  Allows bleeding of air pressure without tools
  One of the easiest bolt-on upgrades you can make to your forks
  Kit includes two bleeder valves




Micro Bleeder Showa Gold (MP-11-0089)
  Features:
  For use on most Showa (gold) inverted forks with a M5x0.8 air bleed screw in the fork cap
  New ultra-compact, low profile design is only 11mm high installed
  Stainless steel body is stronger and will not corrode
  Will fit on many late model Japanese off-road motorcycles
  Easy to install, simply replace the OEM bleeder screw with the Micro Bleeder
  Reduces harshness caused by air build-up
  Allows bleeding of air pressure without tools
  One of the easiest bolt-on upgrades you can make to your forks
  Kit includes two bleeder valves
